Structures

All the photographs on these pages are free for you to access and use.  Click on a thumbnail to see the picture full size. The photograph will open up in a separate window.

If you are using MS Internet Explorer you can download a picture to your own computer by right clicking on it and choosing Save picture as.... If you are using a different browser the method may be different.

All the photos in the ICTeachers Photo Library have been freely given by the photographers, who retain ownership of them. You may use them as long as:

  1. you do not charge for them;

  2. you acknowledge their source.

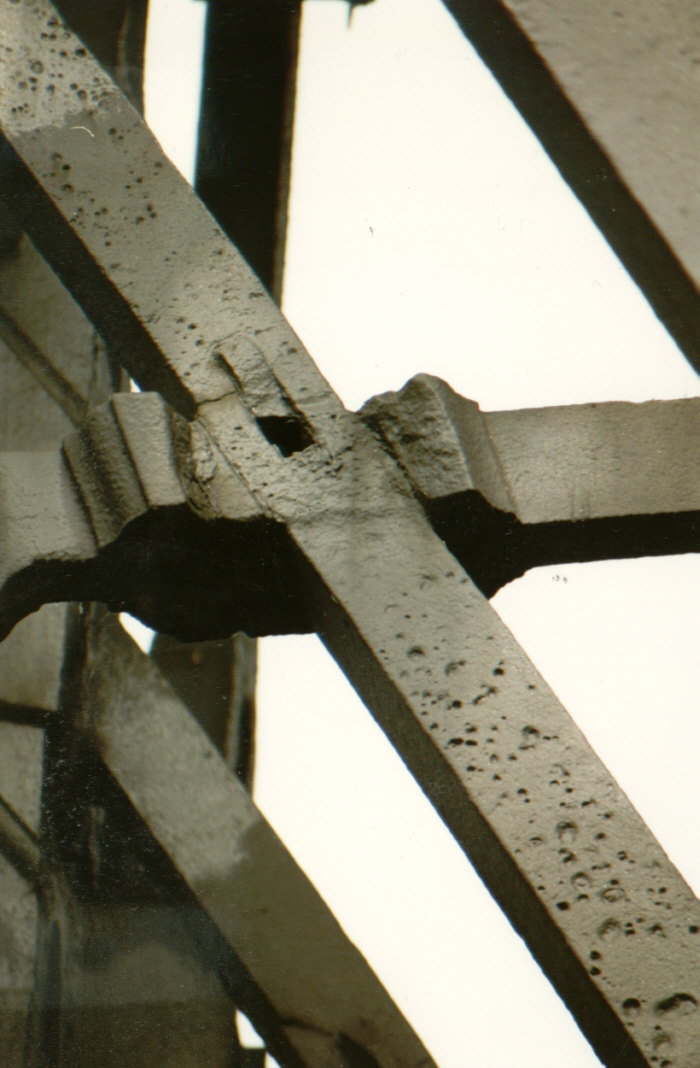

The world's first large iron structure was the Iron Bridge, near Telford in Shropshire. Built in 1779 The Iron Bridge's builders used the technology that they knew. They joined the sections of the bridge with woodworking joints. Here is a dovetail... ... and here, a through housing. Notice how a piece of  the iron has cracked away - showing how cast iron is brittle. Another of the Iron Bridge's joints. This one is complete but shows a crack. Triangles are very stong and cannot be deformed. Here the strength of triangles is used to in scaffolding to support the wall of a derelict building.
Mike Freedman
129kb 136Kb 134kb 149kb 148Kb
flyover.jpg (158213 bytes) davitandlifeboat.jpg (95951 bytes) docksidecrane.jpg (56621 bytes) ferrypier.jpg (133066 bytes)
Concrete is a very commonly used material in our time. These concrete flyovers are at the ferry terminal at Calais. A lifeboat hanging from its davits. The davits are a series of levers to hold the boat over the side of the ship and ropes and pulleys to loower it into the water More levers and pulleys at work in this dockside crane (Calais Ferry Terminal) Cast iron and concrete piers reach out from the shore at Dover Ferry Terminal.
Mike Freedman Mike Freedman Mike Freedman Mike Freedman
155Kb 94Kb 55Kb 130Kb
